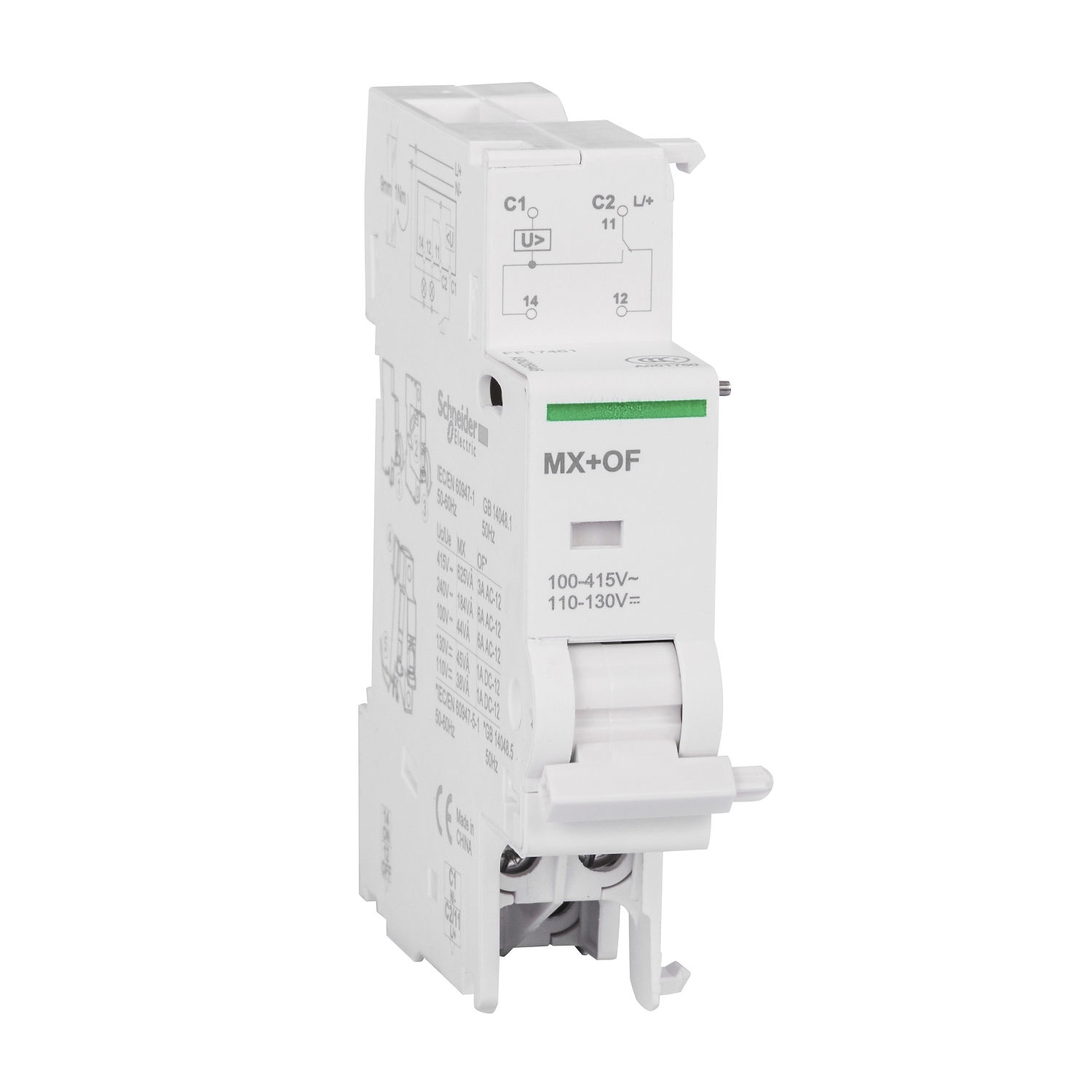

This Acti 9 MX+OF electric tripping auxiliary is a shunt trip release with open/close auxiliary contact. It is dedicated to Acti 9 C120, C60H-DC, DPN N Vigi. This device includes an open/close contact OF to indicate the position of the circuit breaker. It provides a remote indication of the position of the associated device. The product trips the associated device when it is powered on. Emergency stoppage by normally open pushbutton. The width in 9mm pitches is 2. The Ue rated operational voltage is 100VAC to 415VAC or 110VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. There is a mechanical state indicator light, red on the front face. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standards and EN 62019-2 standard only for C120.
