In offerta!

RCA 230 VCA PER INT. IC60 1-2P

259,60

TELECOMANDO TM P/INT.AUT.C60 1-2P 230VCA

COD: SNR A9C70112 Categoria:

Descrizione

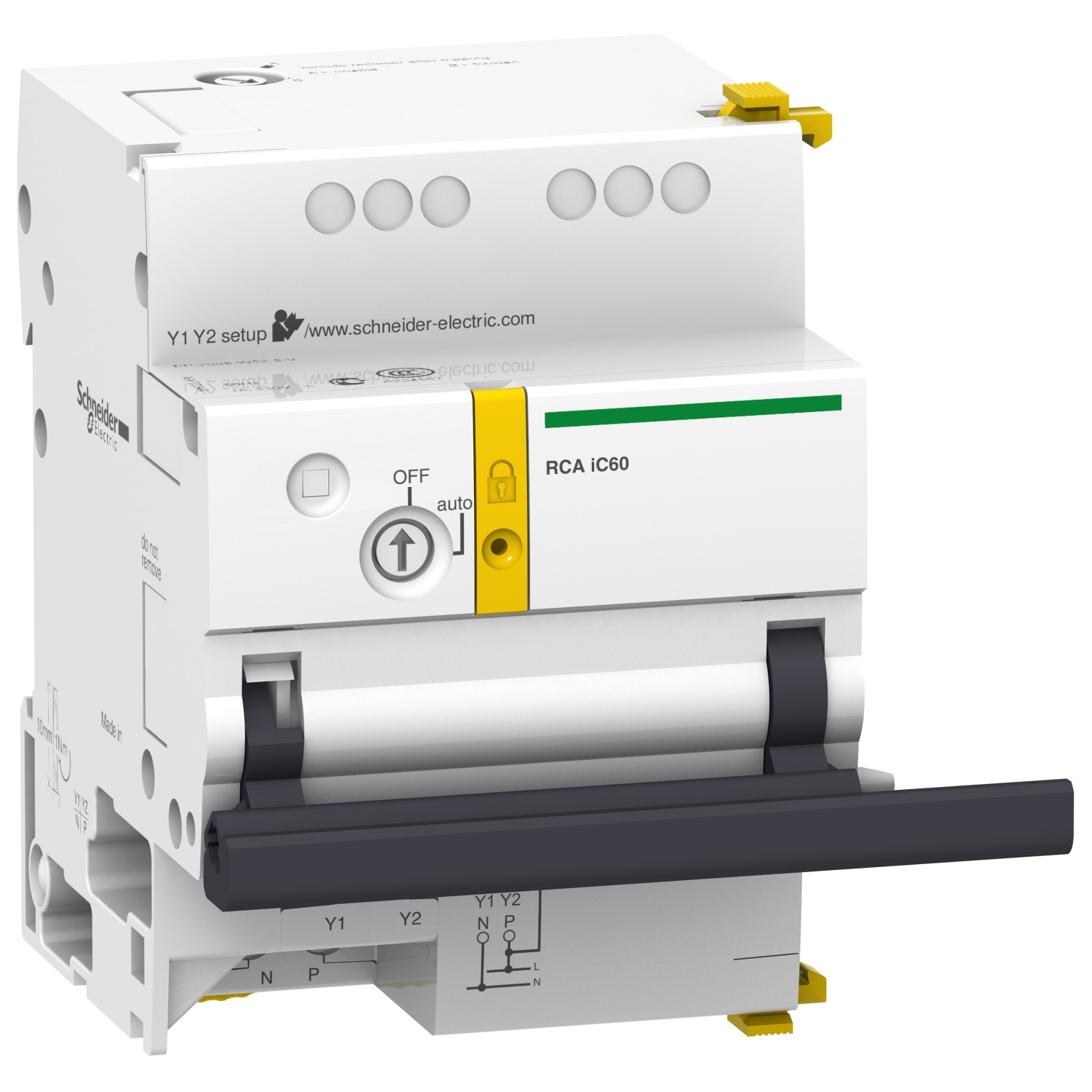

This Acti 9 RCA remote control system is dedicated for iC60 circuit breakers. It allows remote electrical control (opening and closing) of circuit breakers with or without Vigi add-on RCD, with or without auxiliary. It allows circuit breaker reseting after tripping, in accordance with safety principles and regulations in force. The width in 9mm pitches is 7. it allows local control by operating handle. This device controls 1P, 1P+N, 2P installations without Ti24 interface. 2 choices of operation after tripping are possible (A) Enabling of remote circuit breaker resseting or (B) Inhibition of remote resetting. The version with Ti24 interface allows direct interfacing of remote control with programmable logic controller, supervision system, communication device having inputs/outputs in 24VDC (control, OF and SD indications). The circuit is placed in safety configuration by the padlocking device. The version with Ti24 interface allows remote indication by OF potential-free contact, provision of 2 operating modes 1 and 3. The operating temperature is -25°C to + 60°C. The storage temperature is -40°C to + 85°C.

Informazioni aggiuntive

Tensione di dimensionamento

230V

Applicato dal produttore

No

Montaggio dellapparecchio

disgiuntore/interruttore magnetotermico

Larghezza totale TE

3.5

Tipo di tensione per lazionamento

AC

Dispositivo supplementare

comando a distanza

Numero di contatti di riposo

1

Con auto test per funzione corrente differenziale

No

Adatto per intensità di corrente max. dellunità di contatto principale

63A

Adatto per numero max. dei poli dellunità di contatto principale totale

2

The price is for

x 1 Pz

Minimo

1 Pz

Cod. produttore

SNR A9C70112

Cod. alternativo

NMGA9C70112

Cod. Marchiol

668963
