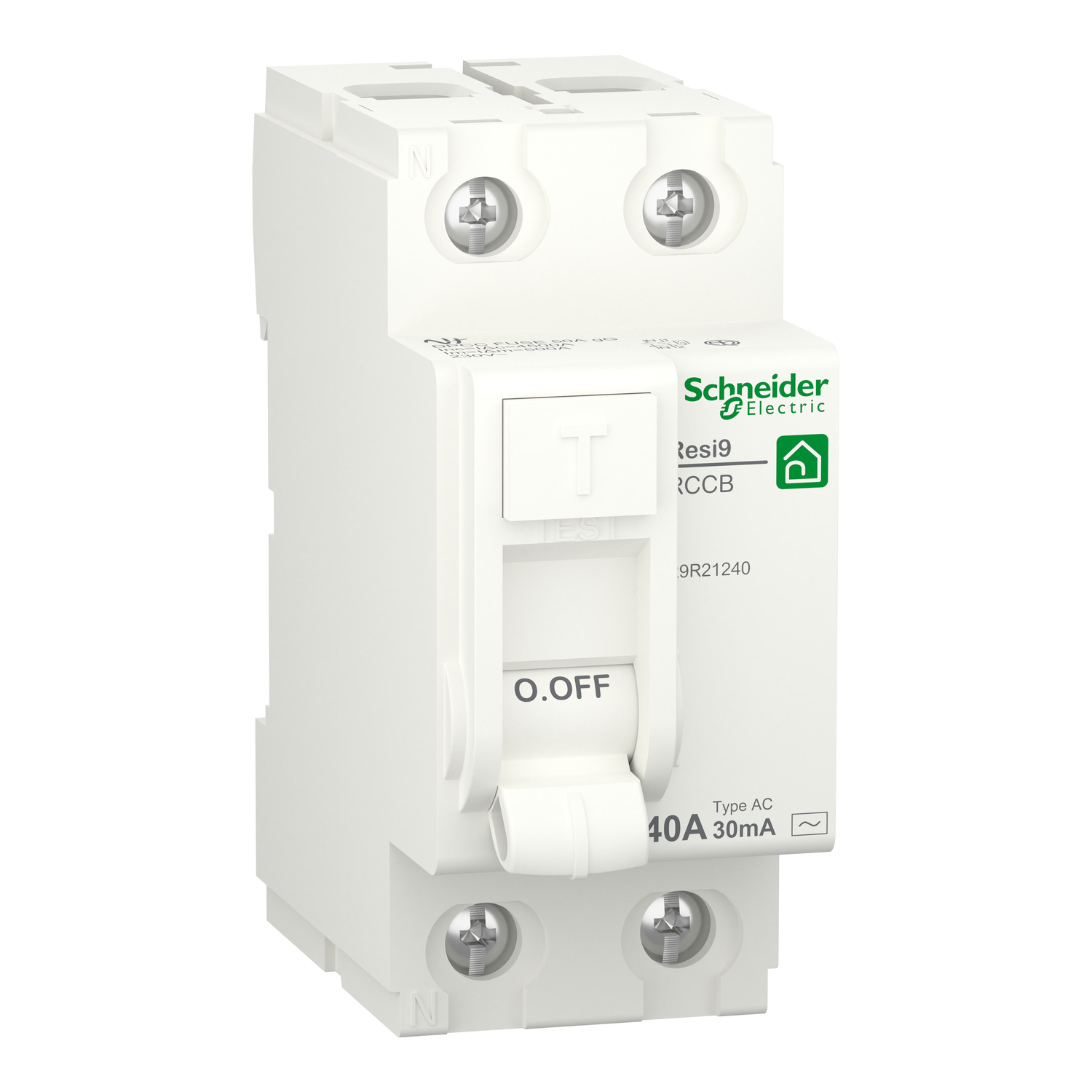

INT. DIFF. RESI9 RCCB 2P 40A 30MA AC

50,40

INTERRUTTORE DIFF. 2P 40A 30MA AC

COD: SNR R9R21240 Categoria:

Descrizione

This is a Resi9 RCCB residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 40A, AC type protection class and a 30mA earth leakage sensitivity. This product protects against electrical shock by direct or indirect contact and fire hazards. As an high sensitivity residual current circuit breaker, it is recommended for all power sockets. It is also compulsory for all equipment in bathrooms, outdoors. The Resi9 is targeted to the residential market for individual and collective buildings. This product is compliant with EN/IEC 61008-2-1 standard. The (Inc/IΔc) conditional rated short circuit current is 4500 A. The (Im/IΔm) rated making and breaking capacity is 500A. The electrical endurance is up to 10000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 230VAC. It is DIN rail mountable. The width in 9mm pitches is 4. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 81mm x (D) 73mm. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -5°C to 40°C. The storage temperature is from -40°C to 80°C.

Informazioni aggiuntive

Profondità di incasso

44mm

Corrente di dimensionamento

40A

Numero di poli

2

Tipo di montaggio

barra DIN

Tensione di isolamento nominale Ui

440V

Corrente di guasto nominale

30mA

Tensione di dimensionamento

230V

Tipo di corrente di guasto

AC

Resistenza a corrente impulsiva

0.25kA

Tipo selettivo

No

Resistenza a corto circuito Icw

4.5kA

Tipo con ritardo breve

No

Grado di inquinamento

2

Frequenza

50/60 Hz

Sezione conduttore collegabile multifilare

1, 25mm²

Dispositivi supplementari possibili

No

Sezione conduttore collegabile unifilare

1, 35mm²

Con dispositivo di bloccaggio

No

Resistenza di tensione ad impulso nominale Uimp

4kV

Larghezza in unità di suddivisione

2

Temperatura ambiente durante il funzionamento

5, 40°C

Grado di protezione IP

IP20

The price is for

x 1 Pz

Minimo

1 Pz

Cod. produttore

SNR R9R21240

Cod. alternativo

SFER9R21240

Cod. Marchiol

10266139
