Descrizione

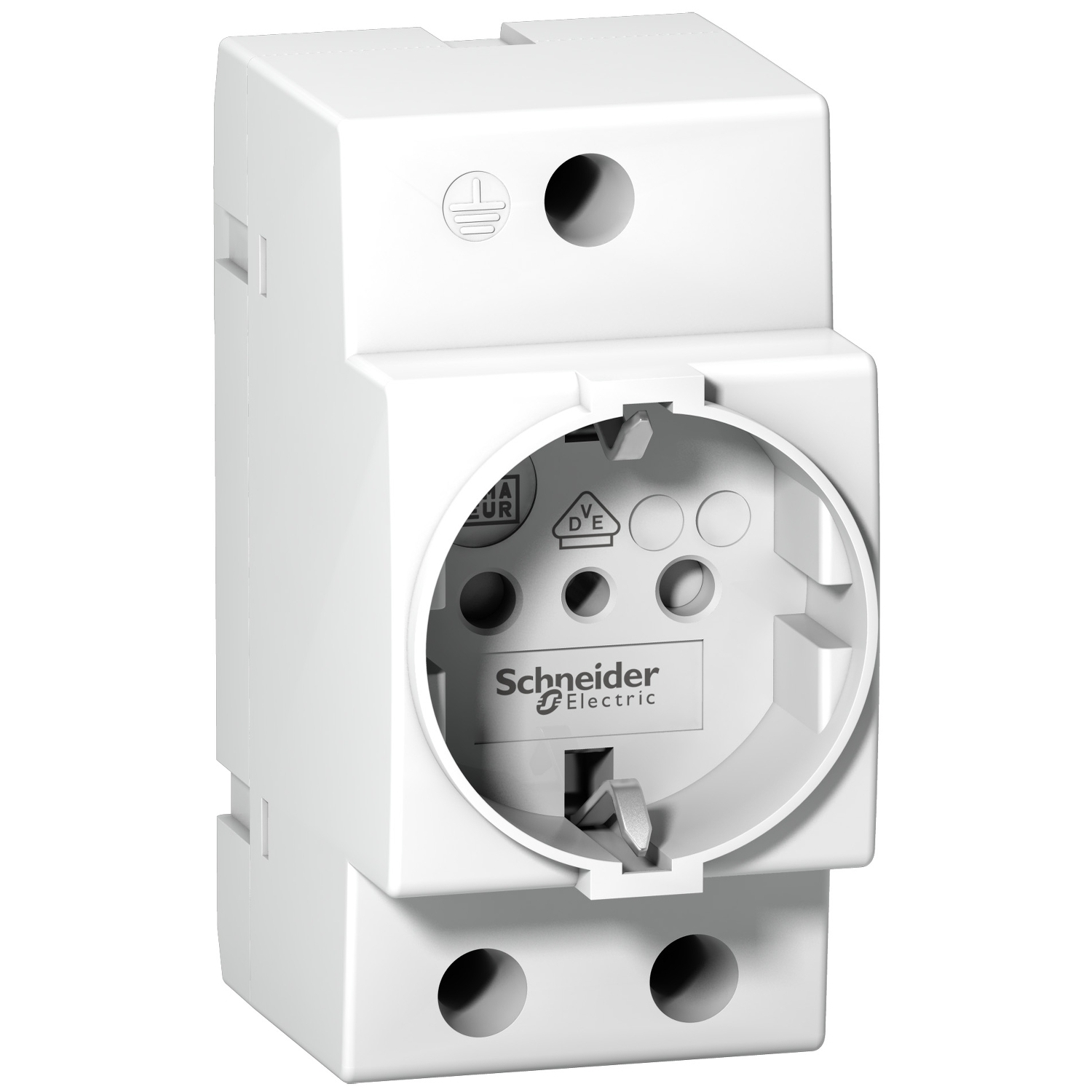

This Acti9 iPC product is a modular power socket allow low-voltage device to be connected to the electrical network. It is a standard 16A 2P+E power socket with protective cover on poles. The color of the socket is white. The tightening torque of connection is 1.2N.m for PZ2 screwdriver type. The connection allows rigid copper cables of 10mm². The connection allows flexible or with ferrule copper cables of 6 mm². The weight is 98g. The width in 9mm pitches is 5. The dimensions are (W) 44mm x (H) 87mm x (D) 60mm. The degree of protection is IP20 at terminals and IP40 in enclosure. It complies with IEC 60884 standard and IMQ as per IEC 2350.
