Descrizione

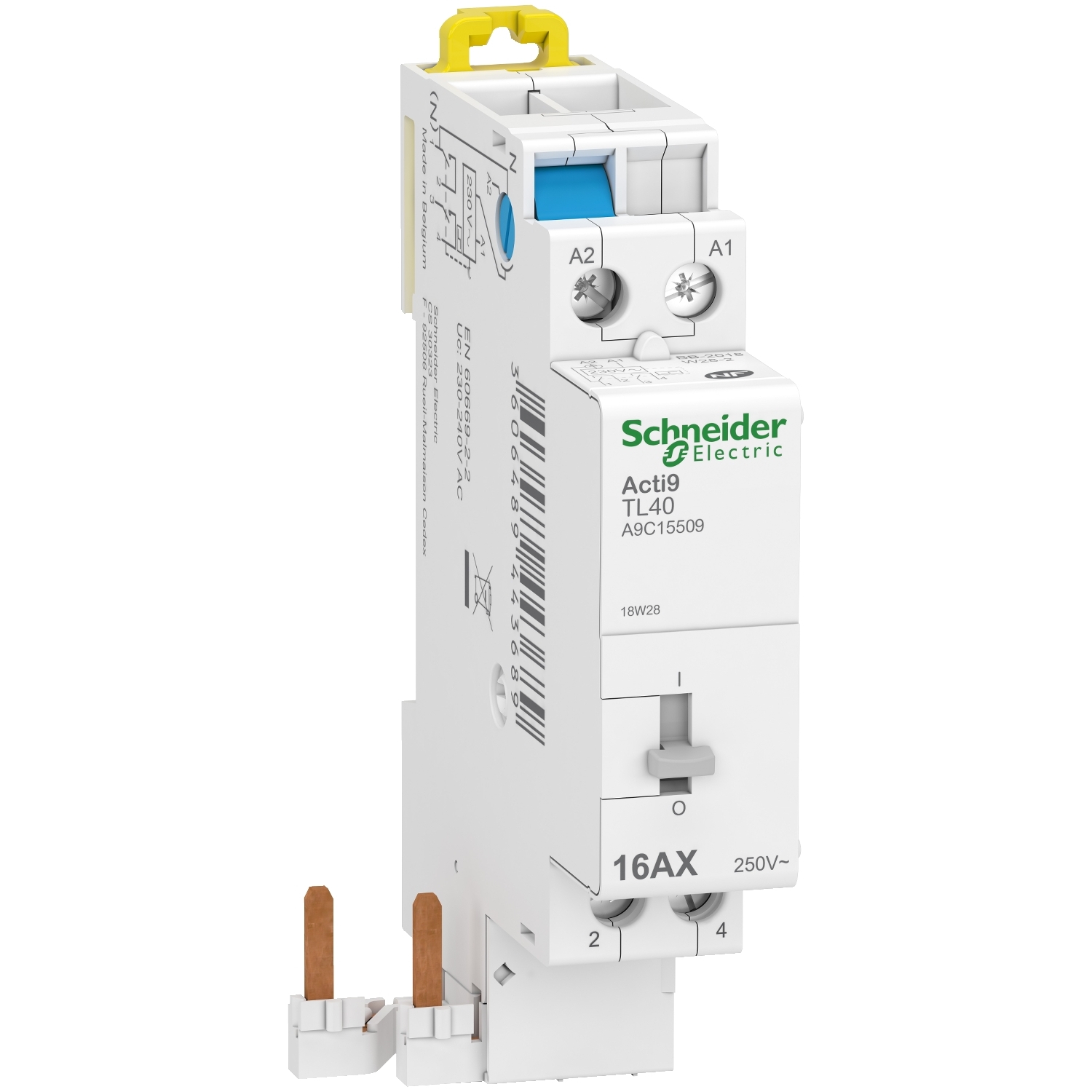

This Acti9 TL40 is a modular impulse relay. This 2P device has 1 normally open contact. The rated current is 16A, 250VAC operating voltage and it operates with 230VAC to 240VAC control voltage. Electrical endurance goes up to 200000 cycles for AC-22. The switching frequency is 5 switching operations/minute or 100 switching operations/day. The duration of the command order should be 50ms. This TL impulse relay allows remote control of single phase circuits. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 2.5kV. The operating frequency is 50Hz. It is DIN rail mountable. The dimensions are (W) 18mm x (H) 87mm x (D) 69mm. The product weight is 105g. The degree of protection is IP20 and IP40 in an enclosure. The operating temperature is from -20°C to 50°C. The storage temperature is from -40°C to 80°C. This product is compliant with IEC/EN 60669-1 and IEC/EN 60669-2-2 standard.
