Descrizione

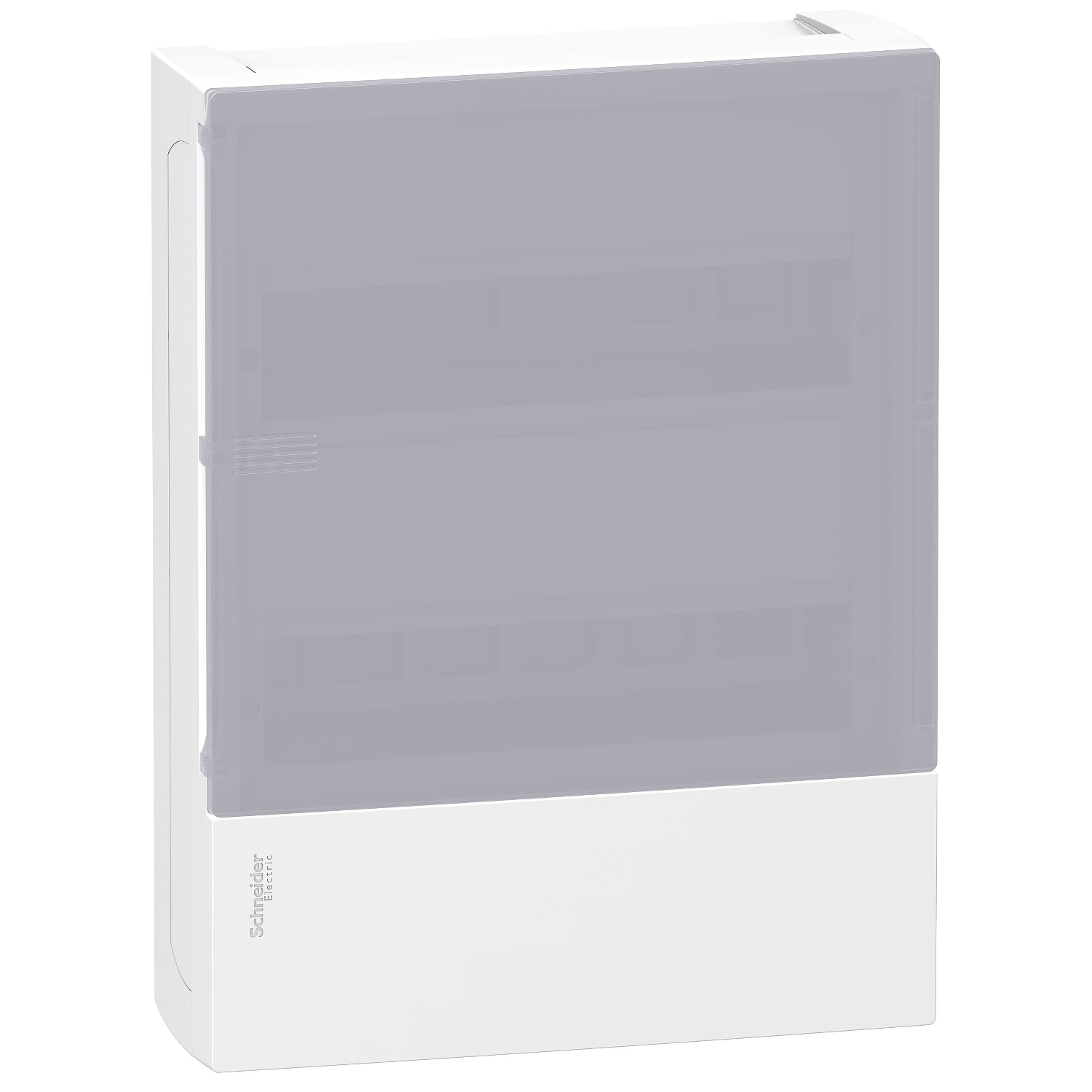

This mini Pragma enclosure for modular devices comes a translucid door. This surface mounting enclosure comes without any terminal blocks. The dimensions are (W) 268mm x (H) 353mm x (D) 102mm. It allows the mounting of modular devices on 2 rows of 12 modules of 18mm. The In rated current is 63A. The rated insulation voltage is below 400VAC. The operating temperature are between -25°C to 60°C. The degree of protection is IP40 and IK07. The insulation is Class 2 as per IEC 60439-3. The material is a self-extinguished plastic resistant to fire and abnormal heat up to 650°C. The color of enclosure is white (RAL 9003).
