Descrizione

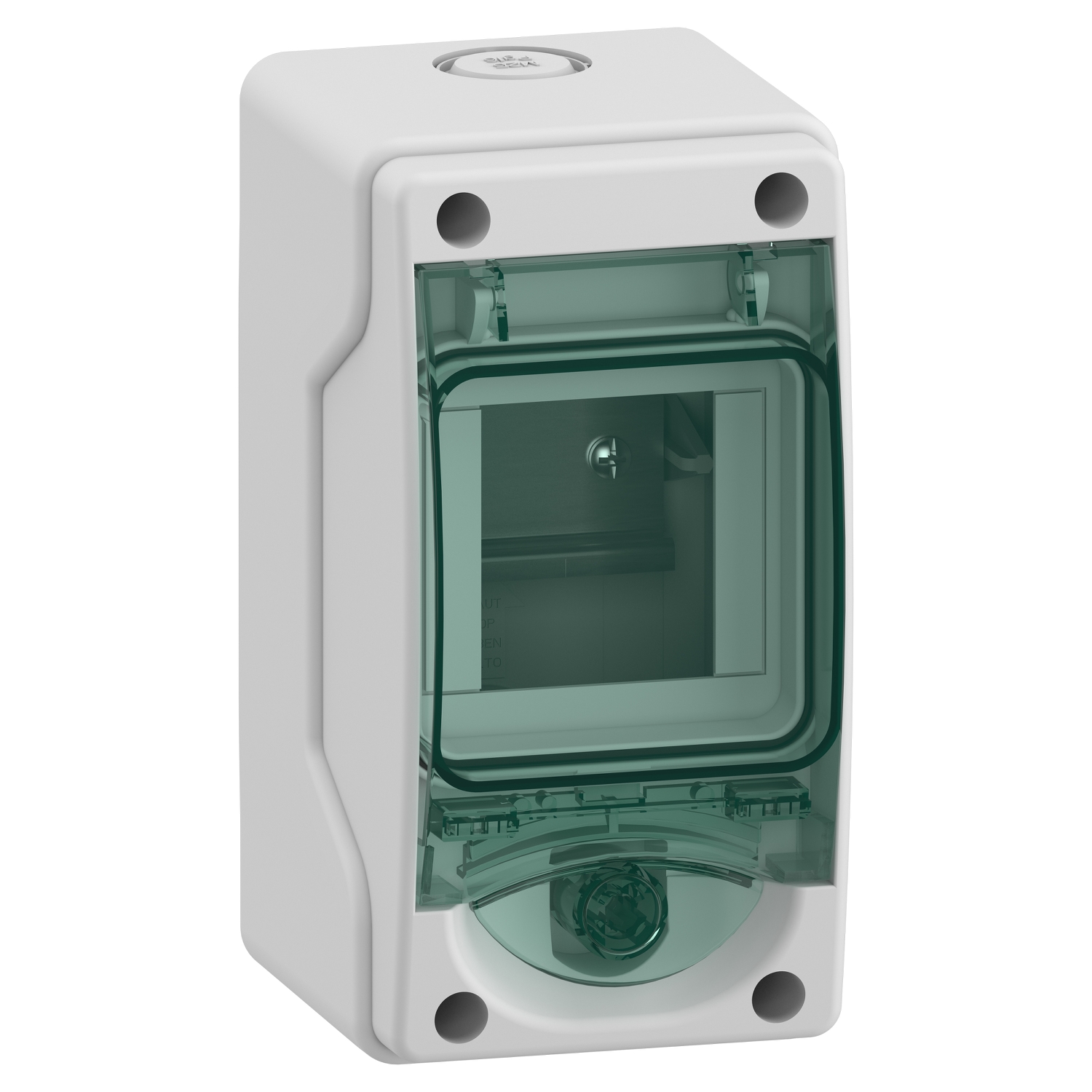

This Kaedra weatherproof enclosure is a surface mounted mini enclosure for modular device. It is composed of 1 row of 3 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP65. It is provided with a transparent green door for modular devices. The colour of enclosure is light grey (RAL 7035). This product complies with IEC 61439-1 and 3, IEC 60670-1 and 24 standard. The cables can enter by the top side of the enclosure via 7 pre-cutouts, and by the left or right side via 2 pre-cutouts. It is equipped with a back plate and a front cover with notch. It is provided with DIN rail. A terminal block can be installed on the back of the enclosure. A marking kit are also delivered within the product. The electrical insulation class is class II (double insulated). The overvoltage category is class II. The dissipated power is 6W. The In rated current is up to 63A. This product complies with IEC 61439-1 and 3, IEC 60670-1 and 24 standard. The dimensions are (W) 80mm x (H) 150mm x (D) 98mm. The material is a self-extinguishing polymer material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-1. It is resistant to UV. The IK degree of protection is IK09. The operating temperature is -25-60 °C.
