Descrizione

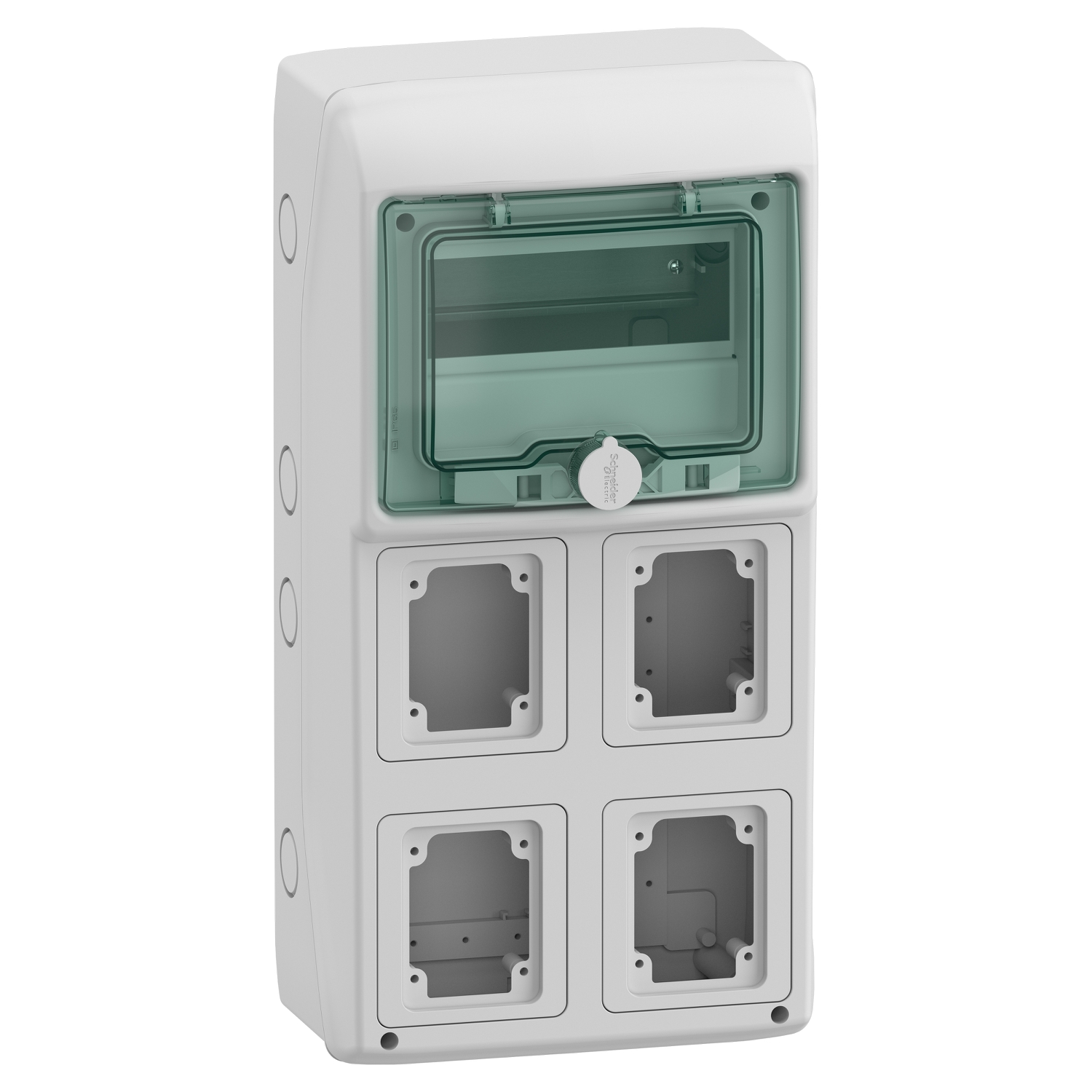

This mini Kaedra weatherproof enclosure for plug and socket comes with transparent green cover. It allows the mounting of modular devices up to 8 modules of 18mm in 1 row, four 90mm x 100mm openings for power outlet. The dimensions of the box are (W) 236mm x (H) 460mm x (D) 160mm. The rated current is 63A. The electrical insulation class is class II (double insulation). The degree of protection is IP65 and IK09. The fire resistance is 650°C. The color of the enclosure is light grey (RAL 7035). The operating temperature are between -25°C to 60°C. This enclosure is compliant with IEC 60439-3. It comes with two wiring straps, one plate for 65mm x 65mm or 75mm x 75mm power outlet, and four plates for 65mm x 85mm power outlet.
