Descrizione

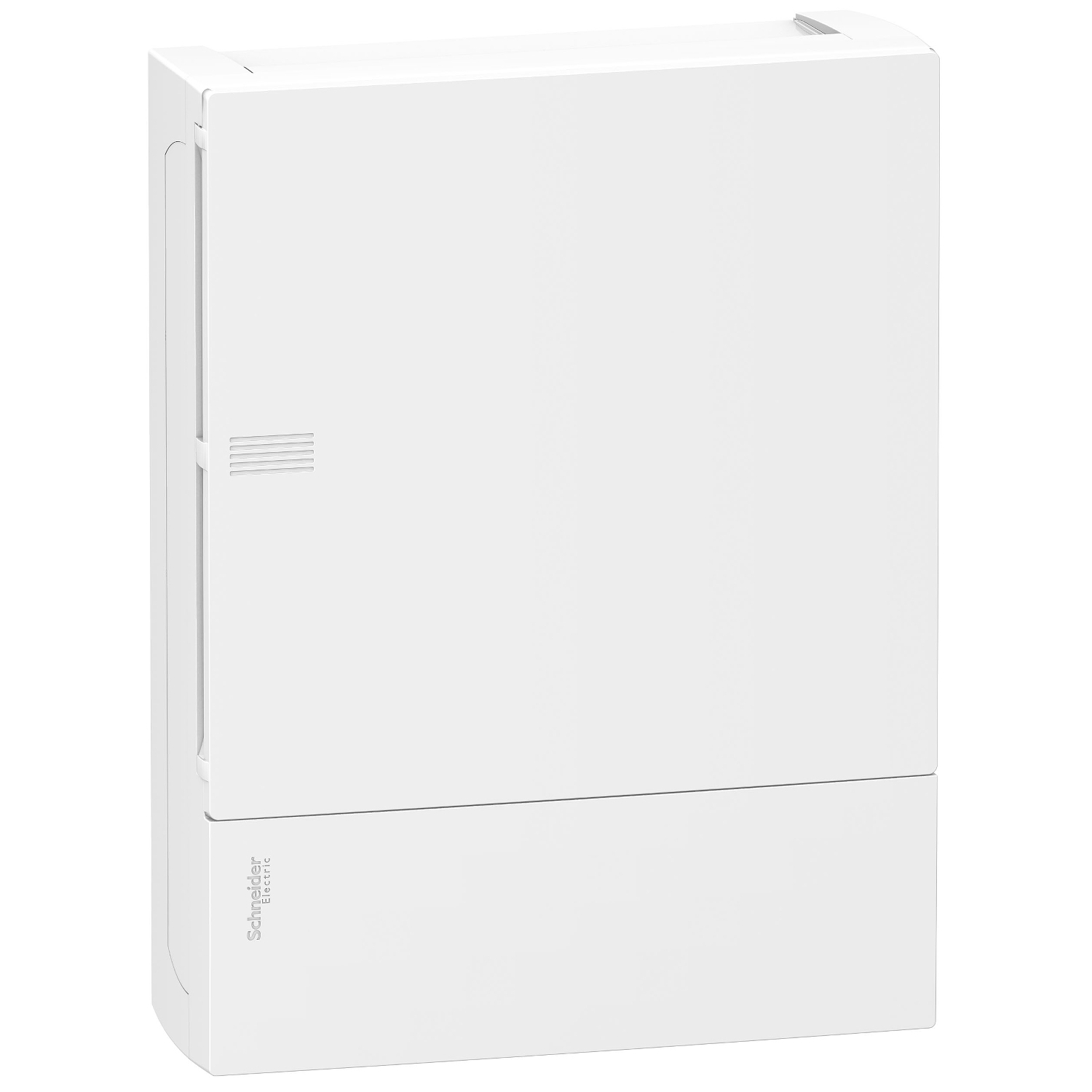

This Mini Pragma enclosure is a surface mounted modular enclosure. This plastic enclosure is composed of 2 rows of 12 modules of 18mm. It can accomodate all types of modular switchgear. This enclosure is dedicated to indoor installation. The IP degree of protection is IP40. It is provided with a plain white door. The colour of enclosure is white (RAL 9003). It is intended for new or renovated installation in residential. The cables can enter via the top or bottom of the enclosure by removable cable entry plates, enabling entry by cable, tube or trunking. It is equipped with a back box and a reversible front cover with notch. It is provided with 35mm asymmetrical DIN rail fixed on the back of the enclosure. There is no terminal block. But a place is reserved to install it, clipped with screw or quick connection. This enclosure can be equipped with a marker light, available in accessories. It allows locating the enclosure in the dark during a power failure. The electrical insulation class is class II (double insulated). The In rated current is up to 63A. This product complies with IEC 61439-3, IEC 60670-24 standard. The dimensions are (W) 268mm x (H) 353mm x (D) 102mm. The material is a plastic self-extinguishing material. Its resistance to flames and to abnormal heat is 650°C as per IEC 60695-2-11. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.
