Descrizione

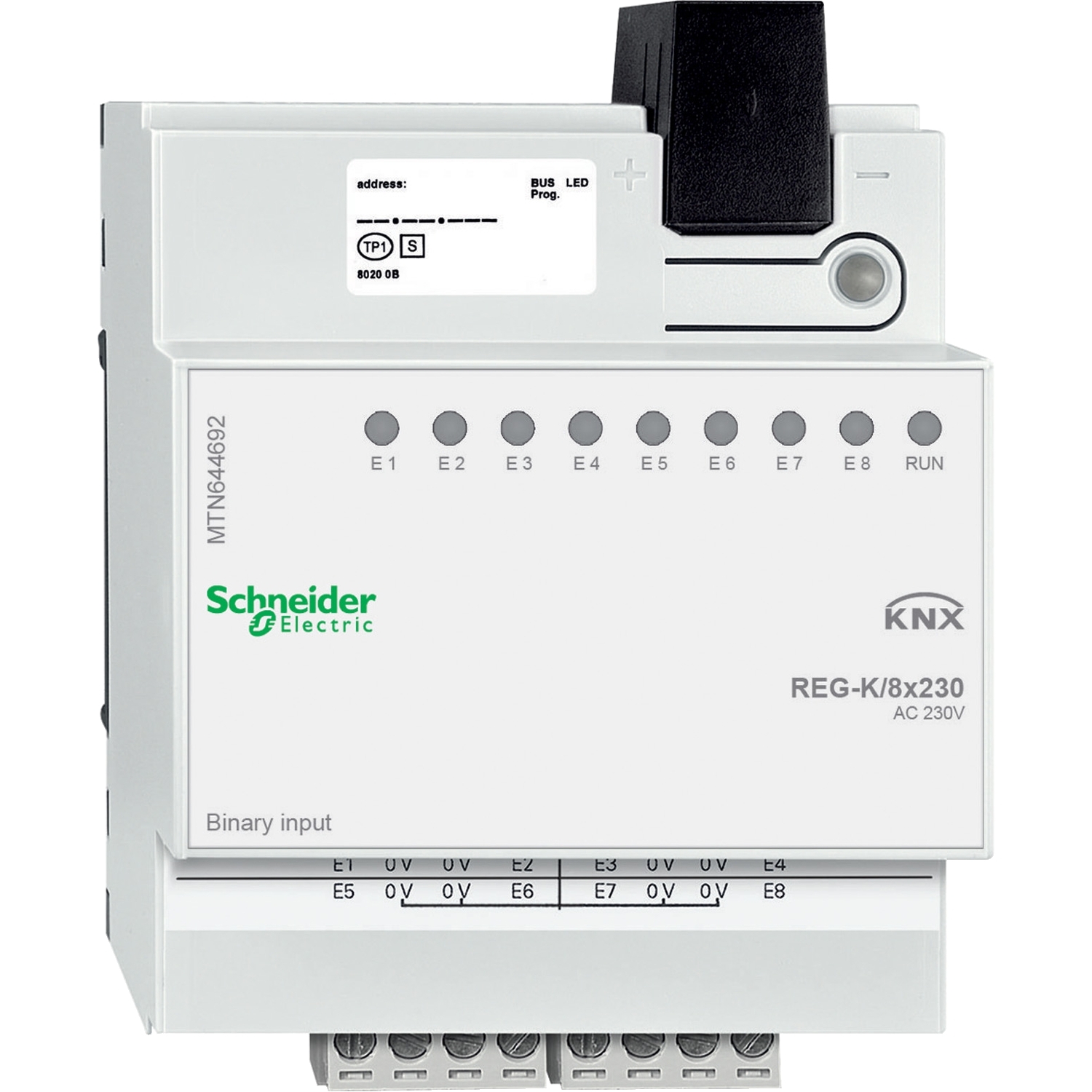

KNX Binary input REG-K/8×230. For connecting eight conventional devices with AC 230 V outputs to the KNX. With integrated bus coupler and plug-in screw terminals. The input voltage level is displayed at each input with a yellow LED. A green LED indicates that the device is ready for operation once the application has been loaded. For installation on DIN rails TH35 according to EN 60715. The bus is connected using a bus connecting terminal. a data rail is not necessary. KNX software functions:. Switching, dimming or blind control via 1 or 2 inputs. Positioning values for blind control (8-bit). Pulse edges with 1-, 2-, 4-, or 8-bit telegrams. Differentiation between short/long operation. Initialisation telegram. Cyclical sending. Pulse edges with 2-byte telegrams. 8-bit linear regulator. Disable function. Break/make contact. Debounce time. Input voltage: AC 230 V, 50-60Hz. Inputs: 8. Input current: AC 12 mA. 0 signal: /equal 40 V. 1 signal: /equal 160 V. Cable length: max. 100 m. Device width: 4 modules, approx. 70 mm. Contents: With bus connecting terminal and cable cover. Colour: light grey.
